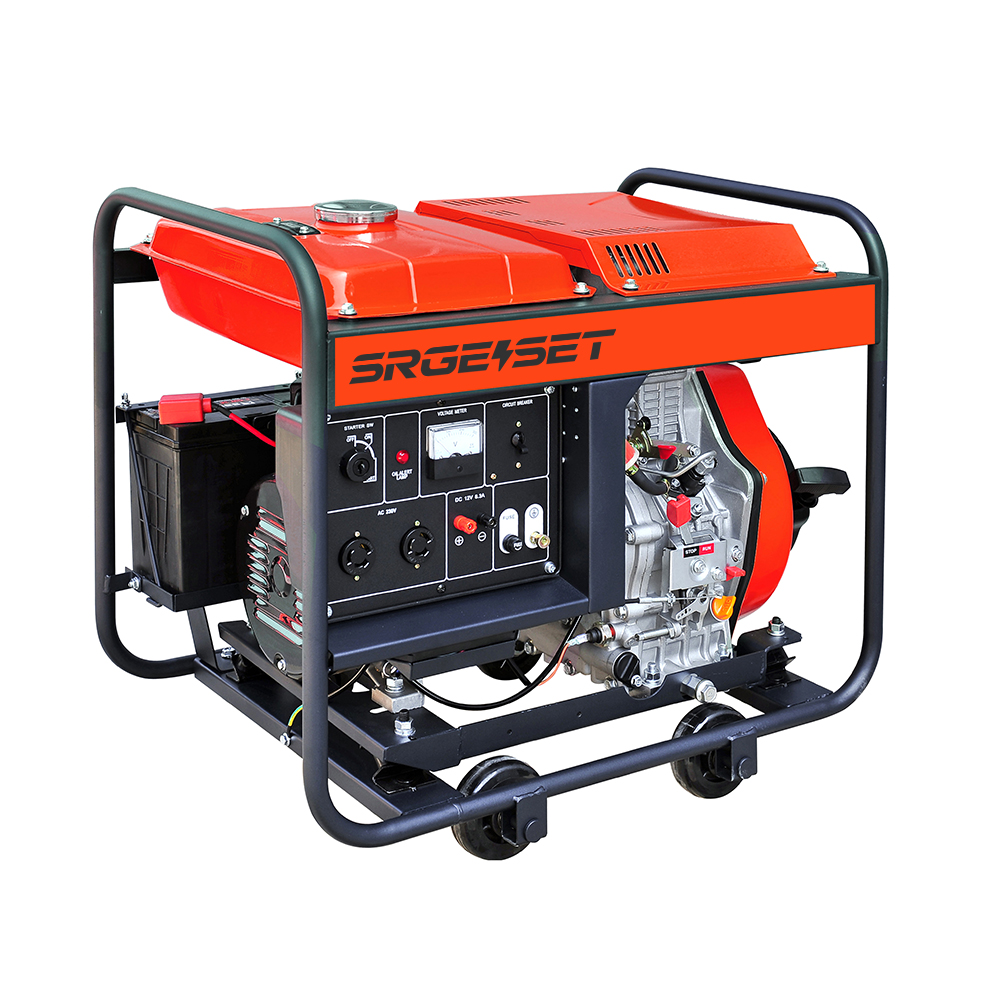

5.5KW Diesel Generator SDG7500E
5.5KW open type diesel generator. Ideal for site use, commercial use, tradesmen or simply home / garage use. SDG7500E is powered by SD188FAE single cylinder 4-Stroke diesel engine. Weighing only 114KG, wheels optional.
Product Details
| MODEL | SDG7500E | ||
|---|---|---|---|
| Rated frequency | Hz | 50 | 60 |
| Rated voltage | V | 220, 230, 240, 110/220, 127/220, 115/230, 120/240, 220/380, 230/400, 240/415 | |
| Rated power | Kw | 5 | 5.5 |
| Max. power | Kw | 5.5 | 6 |
| Phase number | Single phase / three phase | ||
| Excitation mode | Self-excitation and constant voltage (with AVR) | ||
| Power factor | cosΦ | 1.0(0.8) | |
| Insulation grade | F | ||
| Fuel capacity | L | 12.5 | |
| Engine model | SD188FAE | ||
| Engine type | Single cylinder, 4-stroke, air cooled, vertical | ||
| Starting system | Manual / Electric | ||
| Bore x stroke | mm | 88*75 | |
| Displacement | L | 0.456 | |
| Compression ratio | 20:1 | ||
| Rated rotation speed | rpm | 3000/3600 | |
| Rated power | kW | 6.6/6.9 | |
| Lube oil capacity | L | 1.65 | |
| Fuel consumption | g/kW.h | 275/280 | |
| Fuel type | DIESEL: 0＃（summer）-10＃（winter）-35＃（chillness） | ||
| Lube oil type | About CD grade or SAE 10W-30、15W-40 | ||
| Overall dimension(L*W*H) | mm | 740*505*630 | |
| Net weight | kg | 114 | |
