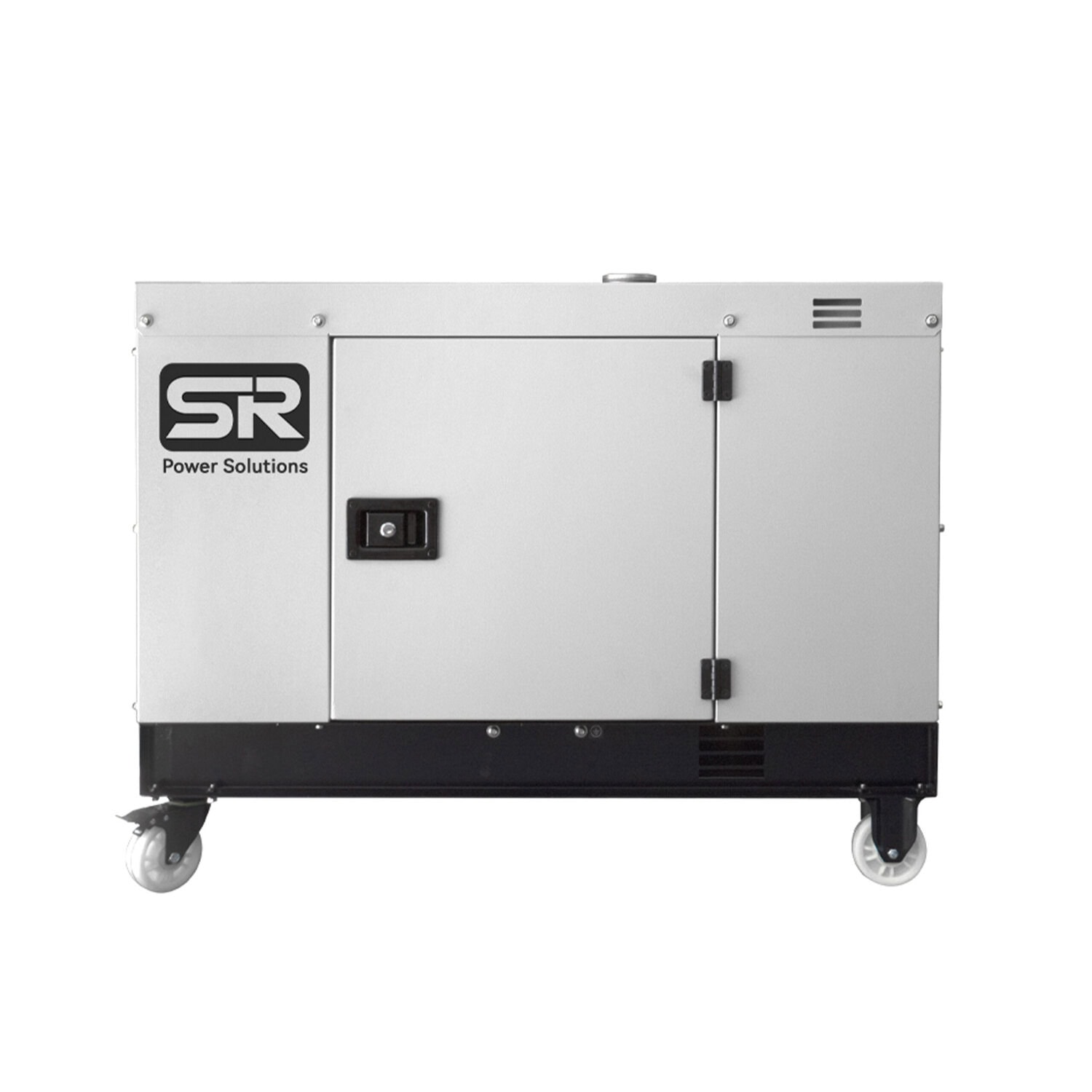

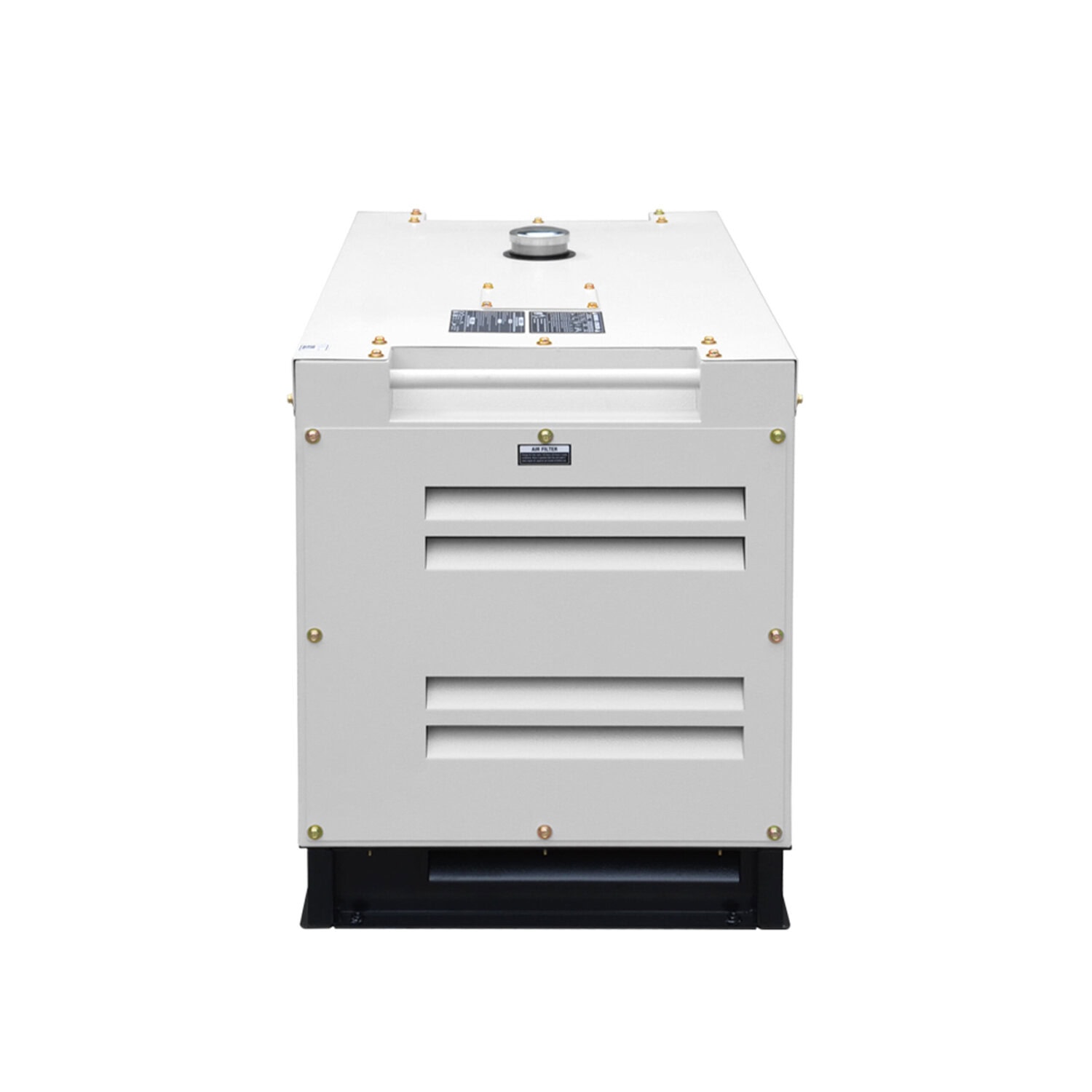

8.5KW Silent Generator SDG10000SE
8.5KW Silent Generator SDG10000SE
Two-stage muffler device
Scientific damping effect, patent two-stage muffler silencer, advanced air-flue design and muffler device.
High conversion efficiency
100% copper alternator, class F insulation, high conversion efficiency, smart AVR controller ensures stable voltage and less voltage waveform distortion.
Strong power
With SR Power 4-stoke diesel engine, new tip-clearance fuel pump and bottom inertia injection technology, makes burning full and power strong.
Product Details
| MODEL | SDG10000SE | ||
|---|---|---|---|
| Rated frequency | Hz | 50 | 60 |
| Rated voltage | V | 220, 230, 240, 110/220, 127/220, 115/230, 120/240, 220/380, 230/400, 240/415 | |
| Rated power | Kw | 8 | 8.5 |
| Max. power | Kw | 8.5 | 9.2 |
| Phase number | Single phase / three phase | ||
| Excitation mode | Self-excitation and constant voltage (with AVR) | ||
| Power factor | cosΦ | 1.0(0.8) | |
| Insulation grade | F | ||
| Fuel capacity | L | 12.5 | |
| Noise Level@7m | dB(A) | 72 | |
| Engine model | SD1100FE | ||
| Engine type | Single cylinder, 4-stroke, air cooled, vertical |
||
| Starting system | Electric start | ||
| Bore x stroke | mm | 100*85 | |
| Displacement | L | 0.668 | |
| Compression ratio | 19.5:1 | ||
| Rated rotation speed | rpm | 3000/3600 | |
| Rated power | kW | 9.5/10.9 | |
| Lube oil capacity | L | 2.1 | |
| Fuel type | DIESEL: 0＃（summer）-10＃（winter）-35＃（chillness） | ||
| Lube oil type | About CD grade or SAE 10W-30、15W-40 | ||
| Overall dimension(L*W*H) | mm | 1060*620*780 | |
| Net weight | kg | 210 | |
