Frequency
Phase
Power
Power range
0.0
0.0
Model

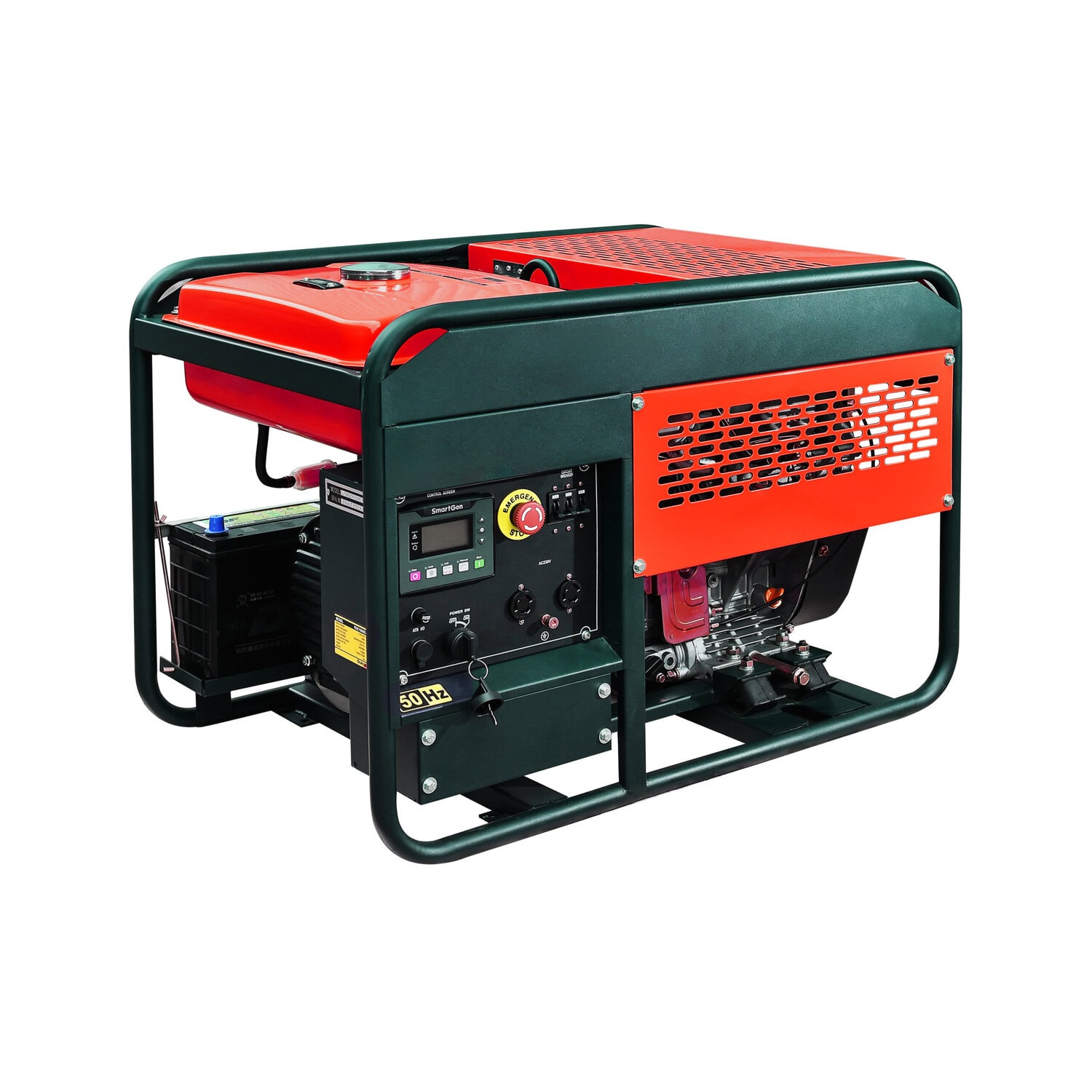

SDG12000E
Single Phase | Air Cooled | Open Frame
Powered bySRGENSET
AlternatorSENCI
EmissionsNON CERTIFIED/ STAGE V
| PRP | ESP | |
|---|---|---|
| POWER kVA | 9 | 10 |
| POWER kW | 9 | 10 |
| Voltage | Frequency | Phase | Alternator |
|---|---|---|---|
| 110/220/230 | 50/60 | Single Phase | 245*130 |
| MODEL | SDG12000E | ||
|---|---|---|---|
| Rated frequency | Hz | 50 | 60 |
| Rated voltage | V | 220, 230, 240, 110/220, 127/220, 115/230, 120/240, 220/380, 230/400, 240/415 | |
| Rated power | Kw | 10 | 11 |
| Max. power | Kw | 11 | 12 |
| Phase number | Single phase / three phase | ||
| Excitation mode | Self-excitation and constant voltage (with AVR) | ||
| Power factor | cosΦ | 1.0(0.8) | |
| Insulation grade | F | ||
| Fuel capacity | L | 25 | |
| Engine model | SD2V88 | ||
| Engine type | 2-cylinder,4-stroke,air- cooled,VType | ||
| Starting system | Electric start | ||
| Bore x stroke | mm | 2-88*75 | |
| Displacement | L | 0.875 | |
| Compression ratio | 20:1 | ||
| Rated rotation speed | rpm | 3000/3600 | |
| Rated power | kW | 12.5/14 | |
| Lube oil capacity | L | 3.2 | |
| Fuel consumption | g/kW.h | 275/280 | |
| Fuel type | DIESEL: 0＃（summer）-10＃（winter）-35＃（chillness） | ||
| Lube oil type | About CD grade or SAE 10W-30、15W-40 | ||
| Overall dimension(L*W*H) | mm | 930*620*695 | |
| Net weight | kg | 185 | |
Quality Inspection Team
We specialize in manufacturing and supplying:
Air-cooled and water-cooled diesel generators with power ranges from 5 KVA to 2500 KVA
Quality Inspection Team
We specialize in manufacturing and supplying:
Air-cooled and water-cooled diesel generators with power ranges from 5 KVA to 2500 KVA
