Frequency
Phase
Power
Power range
0.0
0.0
Model

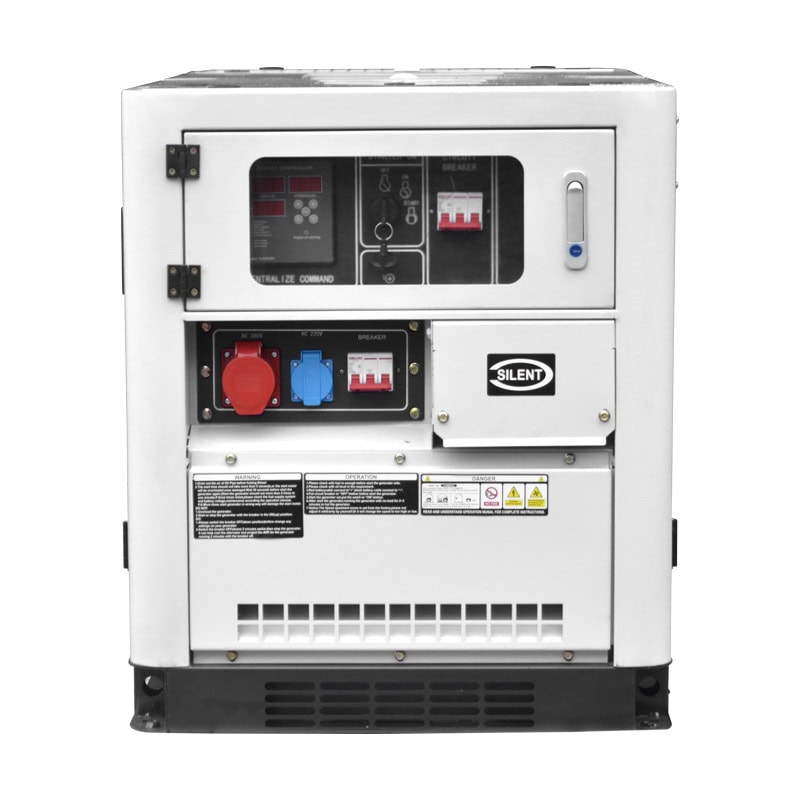

SDG18000SE
Single Phase | Air Cooled | Soundproof
Powered bySRGENSET
AlternatorSENCI
EmissionsNON CERTIFIED/ STAGE V
| PRP | ESP | |
|---|---|---|
| POWER kVA | 14 | 15 |
| POWER kW | 14 | 15 |
| Voltage | Frequency | Phase | Alternator |
|---|---|---|---|
| 110/220/230 | 50/60 | Single Phase | 270*170 |
Two-stage silencer, scientific air duct design, and super sound-absorbing materials ensure low-level noise during operation and are widely used in emergency situations in homes and shops.
It can be matched with remote control, ATS automatic switching technology and overload protection, allowing you to enjoy a high-quality life without worries.
Product Features
Double stage silencer
Scientific shock absorption effect, double-stage muffler, advanced air duct design and muffler device.
Powerful
All are equipped with SUNRONG four-stroke diesel engines, using top clearance oil pump and low-inertia injection technology, with full combustion and strong power.
High conversion rate
All-copper motor, F-class insulation, high conversion efficiency; intelligent voltage regulation AVR, stable voltage, small voltage waveform distortion.
Preheating device
Equipped with air preheating device, it is easy to start at low temperature.
| MODEL | SDG18000SE | ||
|---|---|---|---|
| Rated frequency | Hz | 50 | 60 |
| Rated voltage | V | 220, 230, 240, 110/220, 127/220, 115/230, 120/240, 220/380, 230/400, 240/415 | |
| Rated power | Kw | 14 | 15 |
| Max. power | Kw | 15 | 16 |
| Phase number | Single phase / three phase | ||
| Excitation mode | Self-excitation and constant voltage (with AVR) | ||
| Power factor | cosΦ | 1.0(0.8) | |
| Insulation grade | F | ||
| Fuel capacity | L | 25 | |
| Noise Level@7m | dB(A) | 72 | |
| Engine model | SD2V95 | ||
| Engine type | 2-cylinder, 4-stroke, air- cooled, VType |
||
| Starting system | Electric start | ||
| Bore x stroke | mm | 95*88 | |
| Displacement | L | 1.247 | |
| Compression ratio | 20.0:1 | ||
| Rated rotation speed | rpm | 3000/3600 | |
| Rated power | kW | 19/21 | |
| Lube oil capacity | L | 4 | |
| Fuel type | DIESEL: 0＃（summer）-10＃（winter）-35＃（chillness） | ||
| Lube oil type | About CD grade or SAE 10W-30、15W-40 | ||
| Overall dimension(L*W*H) | mm | 1250*720*880 | |
| Net weight | kg | 270 | |
Quality Inspection Team
In our factory, excellent quality comes not only from strict management, but also relies on advanced quality inspection equipment. We have introduced leading testing instruments to ensure that every product is strictly inspected.
Quality Inspection Process
From the moment raw materials arrive, we rigorously control quality. Throughout the production process, we establish multiple critical quality control points and rigorously monitor every step to ensure precise and accurate workmanship. Before shipping, the final product undergoes comprehensive performance and appearance testing.
Yes, we offer OEM services. Our team of engineers can design and produce products tailored to your specific requirements.
Yes, our products hold multiple invention patents and are fully certified with CE, ISO9001 standards and EU Stage V emission standard.
We offer comprehensive after-sales support, including technical consultations, installation guidance, and repair services. If you encounter any issues, feel free to contact us.
For standard products, delivery typically takes 15-30 days. For custom orders, the lead time will be confirmed based on specific requirements.
We strictly adhere to ISO9001 standards in our production process, and every product undergoes rigorous testing before leaving the factory to ensure performance and reliability.
