Frequency
Phase
Power
Power range
0.0
0.0
Model
Powered by SDG19B

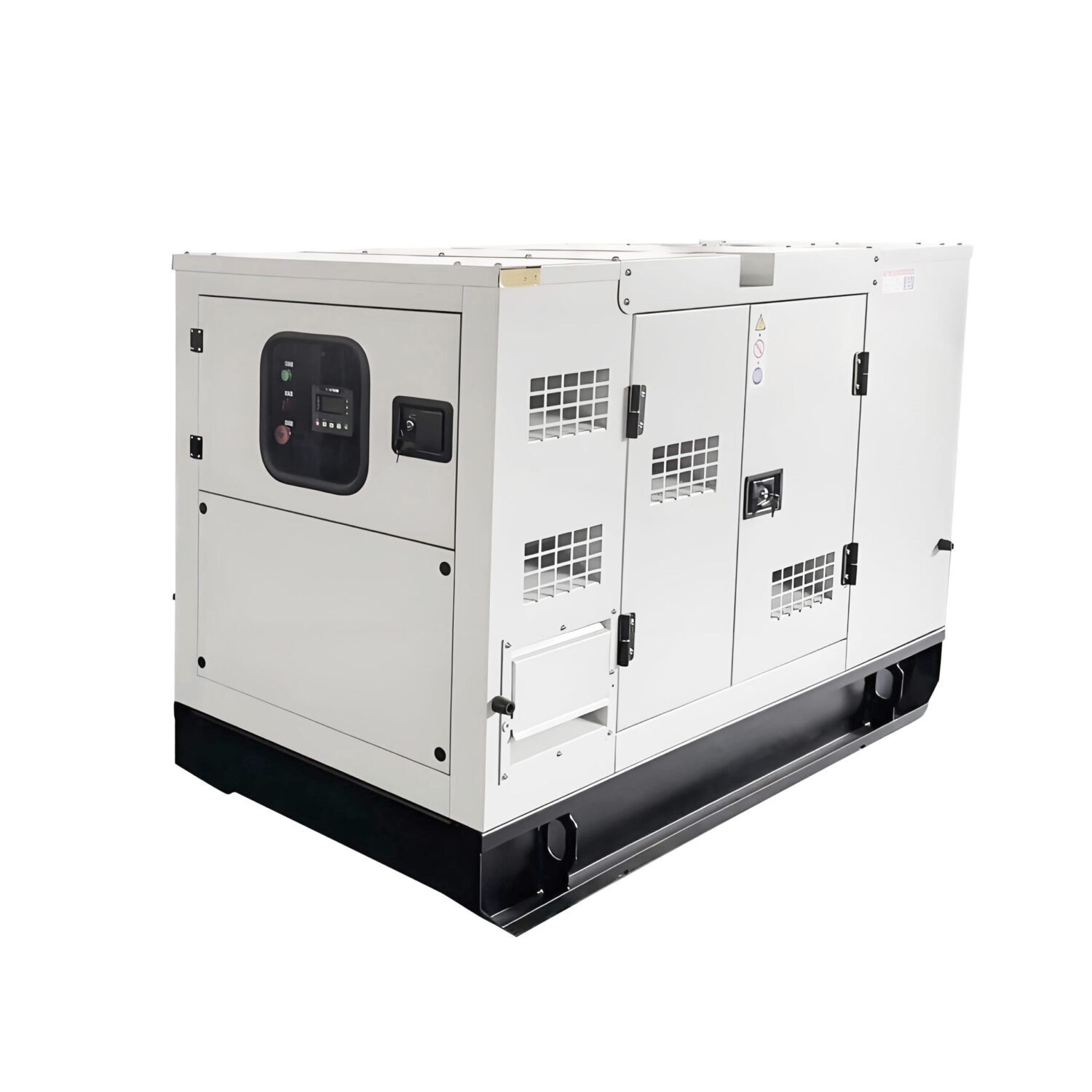

Three Phase | Water Cooled | Soundproof
Powered byBaudouin
AlternatorSRGENSET
EmissionsNON CERTIFIED
| PRP | ESP | |
|---|---|---|
| POWER kVA | 19 | 21 |
| POWER kW | 15 | 16.5 |
| Voltage | Frequency | Phase | Alternator |
|---|---|---|---|
| 208/220/380/400/440 | 50 | Three Phase | SR-184ES |
BAUDOUIN is a renowned brand of diesel engines. Founded in 1918 in France, it has a long history and solid reputation. Its engines are known for their high quality and reliability, widely used in marine and power generation fields. In 2009, it was acquired by Weichai Power. BAUDOUIN engines have advanced technologies, such as the 4M08 series with excellent NVH performance, high combustion efficiency, and advanced fuel injection systems. They also offer a wide power range to meet different application requirements.
| Model | Standby Power (kw) | Standby Power (kw) | Prime Power (kva) | Prime Power (kw) | Engine Model |
|---|---|---|---|---|---|
| SDG21B | 21 | 16.5 | 19 | 15 | 4M06G20/5 |
| SDG25B | 25 | 19.8 | 23 | 18 | 4M06G25/5 |
| SDG36B | 36 | 28.6 | 33 | 26 | 4M06G35/5 |
| SDG44B | 44 | 35.2 | 40 | 32 | 4M06G44/5 |
| SDG50B | 50 | 39.6 | 45 | 36 | 4M06G50/5 |
| SDG55B | 55 | 44 | 50 | 40 | 4M06G55/5 |
| SDG69B | 69 | 55 | 63 | 50 | 4M10G70/5 |
| SDG83B | 83 | 66 | 75 | 60 | 4M10G88/5 |
| SDG110B | 110 | 88 | 100 | 80 | 4M10G110/5 |
| SDG149B | 149 | 118.8 | 135 | 108 | 6M11G150/5 |
| SDG165B | 165 | 132 | 150 | 120 | 6M11G165/5 |
| SDG176B | 176 | 140.8 | 160 | 128 | 6M11G188/5 |
| SDG220B | 220 | 176 | 200 | 160 | 6M16G220/5 |
| SDG248B | 248 | 198 | 225 | 180 | 6M16G250/5 |
| SDG275B | 275 | 220 | 250 | 200 | 6M16G275/5 |
| SDG303B | 303 | 242 | 275 | 220 | 6M16G300/5 |
| SDG352B | 352 | 281.6 | 320 | 256 | 6M16G350/5 |
| SDG385B | 385 | 308 | 350 | 280 | 6M21G400/5 |
| SDG440B | 440 | 352 | 400 | 320 | 6M21G440/5 |
| SDG495B | 495 | 396 | 450 | 360 | 6M21G500/5 |
| SDG550B | 550 | 440 | 500 | 400 | 6M21G550/5 |
| SDG660B | 660 | 528 | 600 | 480 | 6M33G660/5 |
| SDG715B | 715 | 572 | 650 | 520 | 6M33G715/5 |
| SDG748B | 748 | 598.4 | 680 | 544 | 6M33G750/5 |
| SDG825B | 825 | 660 | 750 | 600 | 6M33G825/5 |
| SDG880B | 880 | 704 | 800 | 640 | 8M33G900/5 |
| SDG990B | 990 | 792 | 900 | 720 | 8M33G1000/5 |
| SDG1100B | 1100 | 880 | 1000 | 800 | 8M33G1100/5 |
| SDG1238B | 1238 | 990 | 1125 | 900 | 12M33G1250/5 |
| SDG1375B | 1375 | 1100 | 1250 | 1000 | 12M33G1400/5 |
| SDG1513B | 1513 | 1210 | 1375 | 1100 | 12M33G1500/5 |
| SDG1650B | 1650 | 1320 | 1500 | 1200 | 12M33G1650/5 |
| SDG1925B | 1925 | 1540 | 1750 | 1400 | 16M33G1900/5 |
| SDG2063B | 2063 | 1650 | 1875 | 1500 | 16M33G2000/5 |
| SDG2200B | 2200 | 1760 | 2000 | 1600 | 16M33G2250/5 |
SR Power are known for their excellent reliability and performance, with lower noise levels, lower vibration and lower emissions (without sacrificing power output or performance). This 178F engine uses four different piston strokes to operate effectively. During engine operation, the piston experiences four strokes to achieve each power cycle. An stroke is defined as an upward or downward movement of the piston. After 4 strokes, the cycle is complete and ready to start again.
4-stroke diesel engine achieves a good balance of power, reliability and efficiency. In terms of emissions, the 4-stroke mechanically separates each event, thereby reducing unburned fuel emissions. It can also separate oil from fuel, thereby significantly reducing carbon monoxide emissions.
The 178F OHV commercial grade diesel engine is designed for the most demanding commercial applications. The design of the overhead valve provides the possibility of more fuel saving, and the cast iron cylinder liner provides a longer service life. From motorcycles to lawn mowers and generators, 4-stroke engines power a variety of different types of equipment. Common applications include high-pressure cleaners, log separators, air compressors, and water pumps.
Air-cooled 4-stroke horizontal OHV engine
Easy-to-start recoil starter
Heavy-duty ball bearings support the crankshaft for greater stability
Large double-wall heavy fuel tank with fuel filter in the tank
Large, easy-to-fill fuel tank cap
1. What are your main products?
We specialize in manufacturing and supplying:
Air-cooled and water-cooled diesel generators with power ranges from 5 KVA to 2500 KVA
2. Do you provide custom services?
Yes, we offer OEM services. Our team of engineers can design and produce products tailored to your specific requirements.
3. What is the scale and capacity of your factory?
Our factory covers an area of over 200,000 square meters, equipped with 6 production lines, and has an annual output of 100,000 diesel engines.
4. Are your products certified?
Yes, our products hold multiple invention patents and are fully certified with CE and ISO9001 standards.
5. Which countries or regions do you export to?
We have exported our products to more than 50 countries and have established partnerships with nearly 100 distributors worldwide.
6. Do you provide after-sales service?
Yes, we offer comprehensive after-sales support, including technical consultations, installation guidance, and repair services. If you encounter any issues, feel free to contact us.
7. How can I request a quotation?
You can send an inquiry to us.
8. How long does delivery take?
For standard products, delivery typically takes 15-30 days. For custom orders, the lead time will be confirmed based on specific requirements.
9. What payment methods do you accept?
We accept various payment methods, including Telegraphic Transfer (T/T) and Letters of Credit (L/C). Terms can be negotiated based on your order.
10. How do you ensure product quality?
We strictly adhere to ISO9001 standards in our production process, and every product undergoes rigorous testing before leaving the factory to ensure performance and reliability.
