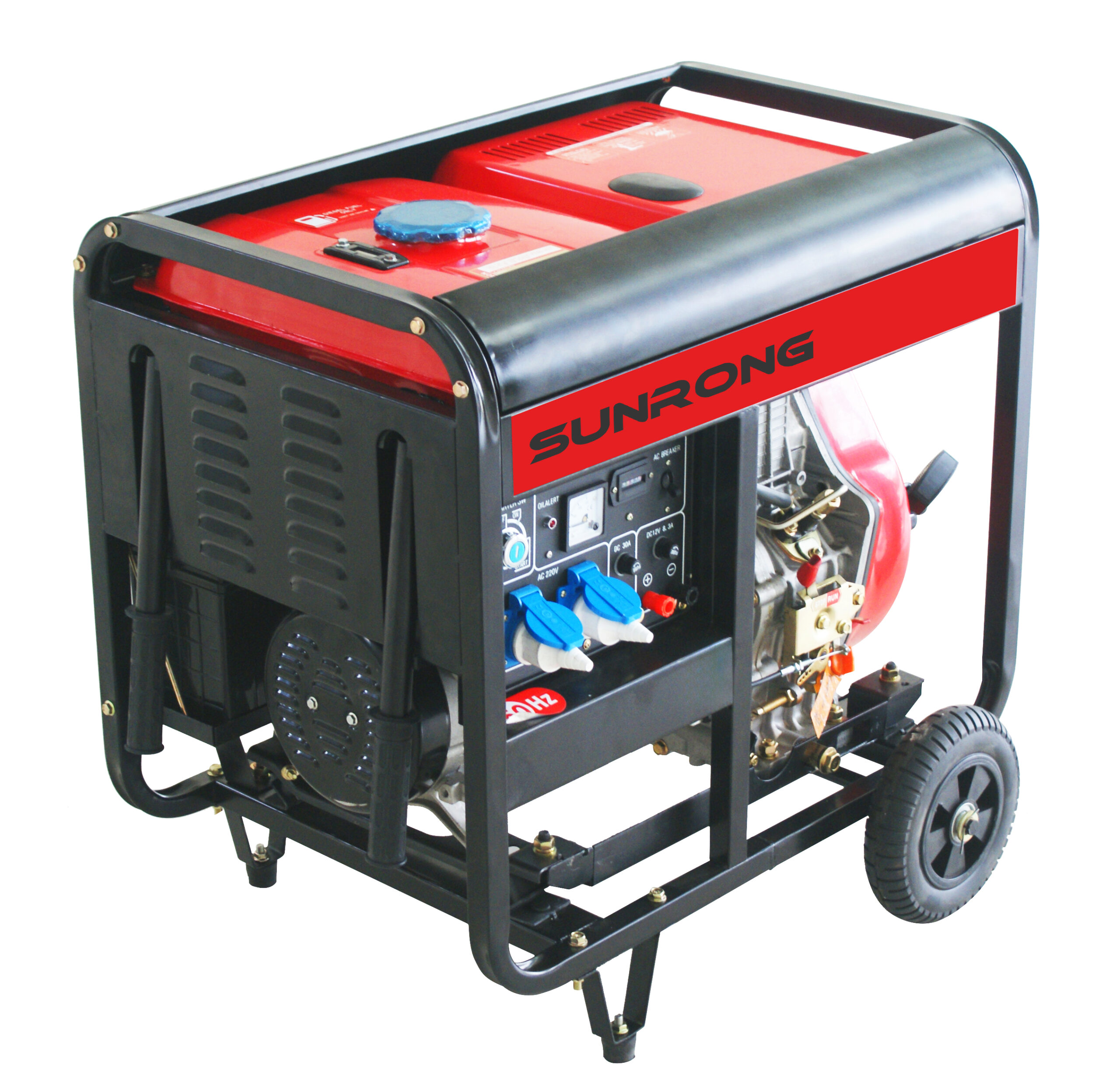

SDG6500EW
Features
- One machine for multiple purposes
- Easy and quick start
- High current& High welding capicity
- Powered by high performance diesel engine
- 100% cooper alternator
Application of welding generator
- Home use welding
- Maintenance station special welding
- Outdoor pipe welding
- Rail welding
Product Details
| MODEL | SDG6500EW | |
|---|---|---|
| Rated frequency | Hz | 50 |
| Rated voltage | V | 220, 230, 110/220, 120/240 |
| Rated power | kVA | 1.8 |
| Welding voltage without load | V | 55-65 |
| Rated current | A | 160 |
| Work voltage | V | 26-30 |
| Current regulation range | A | 50-180 |
| Welding load continuous ratio | 60% | |
| Phase number | Single phase | |
| Excitation mode | Self-excitation and constant voltage (with AVR) | |
| Power factor | cosΦ | 1.0 |
| Insulation Grade | F | |
| Fuel Tank Capacity | L | 12.5 |
| Frame Type | 25*25mm round tube frame | |
| Engine Model | SD186FAE | |
| Starting System | Electric start | |
| Engine Type | Single cylinder, 4-stroke, air cooled, direct injection | |
| Bore x stroke | mm | 86×72 |
| Displacement | ml | 418 |
| Compression Ratio | 20:1 | |
| Ration Rotation Speed | rpm | 3000 |
| Rated power | kW | 5.8 |
| Power-take-off | Crankshaft | |
| Lube Oil Capacity | L | 1.65 |
| Fuel type | DIESEL: 0＃（summer）-10＃（winter）-35＃（chillness） | |
| Lube oil type | About CD grade or SAE 10W-30、15W-40 | |
| Low Oil Pressu re Alarm System | Available | |
| Overall Dimension (L*W*H) | mm | 720*520*630 |
| Net weight | kg | 115 |
