Cummins Series

Cummins Series

The diesel generator set is equipped with Cummins’s own diesel engine.

· Standby Power: 19kW-1650kW

· Type: Open/Silent/Super Silent/Mobile Trailer

· MOQ:1 Set

Standby		Prime		Engine		Alternator			Open Type Dimension	Silent Type Dimension
kVA	kW	kVA	kW	Model	Gov	Stamford	Leroy Somer	SRGENSET	Open Type Dimension	Silent Type Dimension
23.75	19	21.25	17	4B3.9-G11	Mech	SOL2-M1	TAL-A40-G	SA184-18	19009401450	22869561255
30	24	27.5	22	4B3.9-G1	Mech	SOL2-P1	TAL-A42-C	SA184-22	19009401450	22869561255
33	26	30	24	4B3.9-G12	Elec	SOL2-P1	TAL-A42-C	SA184-25	19009401450	22869561255
43.75	35	40	32	4BT3.9-G1	Mech	S1L2-K1	TAL-A42-F	SA224-34	19009401450	22869561255
62.5	50	56.25	45	4BTA3.9-G2 (QC50/60E)	Elec	S1L2-Y1	TAL-A42-H	SA224-50	19009401450	246010061255
70	56	62.5	50	4BTA3.9-G2 (QC58/67E)	Elec	UCI224F	TAL-A42-H	SA224-50	19009401450	246010061255
90	72	80	64	4BTA3.9-G11	Elec	UCI224G	TAL-A44-C	SA224-70	19009401450	246010061255
105	84	95	76	4BTA3.9-G13	Elec	UCI274C	TAL-A44-D	SA274-80	22509901450	296011001650
110	88	100	80	4BTAA3.9-G3	Elec	UCI274C	TAL-A44-D	SA274-80	22509901450	296011001650
	100	115	92	6BTA5.9-G2	Elec	UCI274D	TAL-A44-E	SA274-96	22509901450	336011101700
145	116	135	108	6BTAA5.9-G2	Elec	UCI274E	TAL-A44-H	SA274-112	23809901450	336011101700
165	132	150	120	6BTAA5.9-G12	Elec	UCI274F	TAL-A44-J	SA274-128	24259901560	336011101700
200	160	181.25	145	6CTA8.3-G2	Elec	UCI274G	TAL-A44-L	SA274-144	249011141560	336011101700
215	172	200	160	6CTAA8.3-G2	Elec	UCI274H	TAL-A44-M	SA274-160	249011141560	362012322050
275	220	250	200	6LTAA8.9-G3	Elec	UCDI274K	TAL-A46-D	SA274-200	268011501700	362012322050
300	240	270	216	6LTAA9.5-G3	Elec	S4L1D-D4	TAL-A46-E	SAC4-240	337012501950	426014622100
340	272	310	248	6LTAA9.5-G1	Elec	S4L1D-D4	TAL-A46-G	SAC4-250	337012501950	426014622100
375	300	343.75	275	NTA855-G2A	Elec	S4L1D-E4	TAL-A46-H	SAC4-280	360014002150	470016302400
425	340	387.5	310	6ZTAA13-G3	Elec	S4L1D-F4	TAL-A473-A	SAC4-320	360014002150	470016302400
475	380	437.5	350	6ZTAA13-G4	Elec	S4L1D-G4	TAL-A473-B	SAC4-350	360014002150	470016302400
550	440	500	400	QSZ13-G10	ECM	S5L1D-C4	TAL-A473-C	SAC5-400	360014002150	470016302400
650	520	575	460	KTAA19-G6	Elec	S5L1D-E4	TAL-A473-E	SAC5-450	455021002320	506019122500
700	560	625	500	KT38-G	Elec	S5L1D-F4	TAL-A473-F	SAC5-500	455021002320	506019122500
825	660	750	600	KTA38-G2	Elec	S5L1D-H4	TAL-A49-B	SAC5-600	455021002320	540022602550
887.5	710	800	640	KTA38-G2B	Elec	S6L1D-C4	TAL-A49-C	SAV6-640	455021002320	540022602550
1000	800	910	728	KTA38-G2A	Elec	S6L1D-D4	TAL-A49-D	SAV6-728	475021002320	540022602550
1100	880	1000	800	KTA38-G5	Elec	S6L1D-E4	TAL-A49-E	SAV6-800	475021002320	540022602550
1375	1100	1250	1000	KTA50-G3	Elec	S6L1D-G4	LSA50.2 M6	SAV6-1000	528322602510	20'GP Container
1650	1320	1375	1100	KTA50-G8	Elec	S6L1D-H4	LSA50.2 L7	SAV6-1120	590023002600	40'HQ Container
1650	1320	1475	1180	KTA50-GS8	Elec	S7L1D-C41	LSA50.2 L8	SAV6-1240	590023002600	40'HQ Container
1770	1416	1650	1320	KTA50-G15X	Elec	S7L1D-D41	LSA50.2 VL10	SAP7-1320	590023002600	40'HQ Container
2062.5	1650	2000	1600	KTA50-G16B	Elec	S7L1D-G41	LSA52.3 S6	SAP7-1664	590023002600	40'HQ Container

Standby		Prime		Engine		Alternator			Open Type Dimension	Silent Type Dimension
kVA	kW	kVA	kW	Model	Gov	Stamford	Leroy Somer	SRGENSET	Open Type Dimension	Silent Type Dimension
27.5	22	25	20	4B3.9-G11	Mech	S0L2-M1	TAL-A40-F	SA184-19.2	19009401450	22869561255
33.75	27	30	24	4B3.9-G2	Mech	S0L2-P1	TAL-A40-G	SA184-24	19009401450	22869561255
37.5	30	35	28	4B3.9-G12	Elec	S0L2-P1	TAL-A42-C	SA184-30	19009401450	22869561255
50	40	45	36	4BT3.9-G2	Mech	S1L2-K1	TAL-A42-E	SA184-36	19009401450	22869561255
70	56	63.75	51	4BTA3.9-G2 (QC50/60E)	Elec	S1L2-R1	TAL-A42-G	SA224-54	19009401450	246010061255
85	68	75	60	4BTA3.9-G2 (QC58/67E)	Elec	S1L2-Y1	TAL-A42-H	SA224-60	19009401450	246010061255
100	80	90	72	4BTA3.9-G11	Elec	UCI 224F	TAL-A44-C	SA224-77	19009401450	246010061255
115	92	105	84	6BT5.9-G2 (QC86/100E)	Elec	UCI 224G	TAL-A44-C	SA224-82	22509901450	336011101700
137.5	110	125	100	6BT5.9-G2 (QC96/115E)	Elec	UCI 274C	TAL-A44-D	SA224-96	22509901450	336011101700
156.25	125	145	116	6BTAA5.9-G2	Elec	UCI 274D	TAL-A44-E	SA274-120	23809901450	336011101700
175	140	160	128	6BTAA5.9-G12	Elec	UCI 274E	TAL-A44-K	SA274-134	23809901450	336011101700
208.75	167	190	152	6CTA8.3-G2	Elec	UCI 274F	TAL-A44-K	SA274-154	249011141560	336011101700
230	184	210	168	6CTAA8.3-G2	Elec	UCI 274F	TAL-A44-L	SA274-168	249011141560	362012322050
285	228	260	208	6LTAA8.9-G2	Elec	UCI 274H	TAL-A46-C	SA274-216	268011501700	362012322050
310	248	280	224	6LTAA8.9-G3	Elec	UCDI 274J	TAL-A46-C	SA274-240	337012501950	426014622100
350	280	320	256	6LTAA9.5-G1	Elec	S4L1D-C4	TAL-A46-D	SA314-264	337012501950	426014622100
385	308	350	280	NTA855-G1B	Elec	S4L1D-D4	TAL-A46-E	SA314-288	360014002150	470016302400
425	340	387.5	310	6ZTAA13-G3	Elec	S4L1D-D4	TAL-A46-G	SA314-312	360014002150	470016302400
440	352	400	320	NTA855-G3	Elec	S4L1D-E4	TAL-A46-G	SA314-336	360014002150	470016302400
481.25	385	437.5	350	6ZTAA13-G2	Elec	S4L1D-E4	TAL-A46-H	SA314-360	360014002150	470016302400
500	400	475	380	QSZ13-G3	Elec	S4L1D-F4	TAL-A473-A	SA314-384	360014002150	470016302400
575	460	525	420	KTA19-G3	Elec	S4L1D-F4	TAL-A473-B	SA314-432	360014002150	470016302400
600	480	550	440	QSZ13-G11	Elec	S4L1D-G4	TAL-A473-B	SA354-480	360014002150	470016302400
635	508	577.5	462	KTA19-G3A	Elec	S5L1D-C4	TAL-A473-B	SA354-480	455021002320	506019122500
687.5	550	625	500	KTAA19-G5	Elec	S5L1D-D4	TAL-A473-C	SA354-540	455021002320	540022602550
850	680	772.5	618	KTA38-G	Elec	S5L1D-F4	TAL-A473-F	SA354-648	455021002320	540022602550
950	760	863.75	691	KTA38-G1	Elec	S5L1D-G4	TAL-A49-B	SA354-720	455021002320	540022602550
1000	800	908.75	727	KTA38-G2	Elec	S5L1D-H4	TAL-A49-B	SA354-720	455021002320	540022602550
1125	900	1025	820	KTA38-G2A	Elec	S6L1D-C4	TAL-A49-C	SA404-874	455021002320	540022602550
1265	1012	1150	920	KTA38-G4	Elec	S6L1D-D4	LSA49.3 L9	SA404-960	455021002320	540022602550
1587.5	1270	1443.75	1155	KTA50-G3	Elec	S6L1D-F4	LSA50.2 M6	SA404-1200	528322602510	20'GP Container
1930	1544	1755	1404	KTA50-G9	Elec	S7L1D-C41	LSA50.2 L8	SA404-1440	590023002600	40'HQ Container

Generator Set Parameters - Cummins Engine

Engine

Fuel Consumption per hour

190-250g/kWh

Diesel Generator Set

Phase	AC Three Phase
Power Factor (cosΦ)	0.8(lag)
Fuel Tank Capacity	100L-10000L
Noise Level	≤75 db
Type	Open,Slient(Super Slient),Protable,Containerized
Color	Customization available
Certification	ISO9001/ISO14001/CE/E49
Warranty	One Year/1000 Running Hour

Diesel Generator Manufacturers

SRGENSET is a diesel generator set manufacturer in China. We help our customers obtain reliable mains/emergency power sources by providing reliable power supply solutions for various applications.

· Advanced Diesel Generator Production Line

· Independent design and assembly, supporting customer customization.

· A rigorous review process ensures high-quality diesel generators.

Generator Set Structure

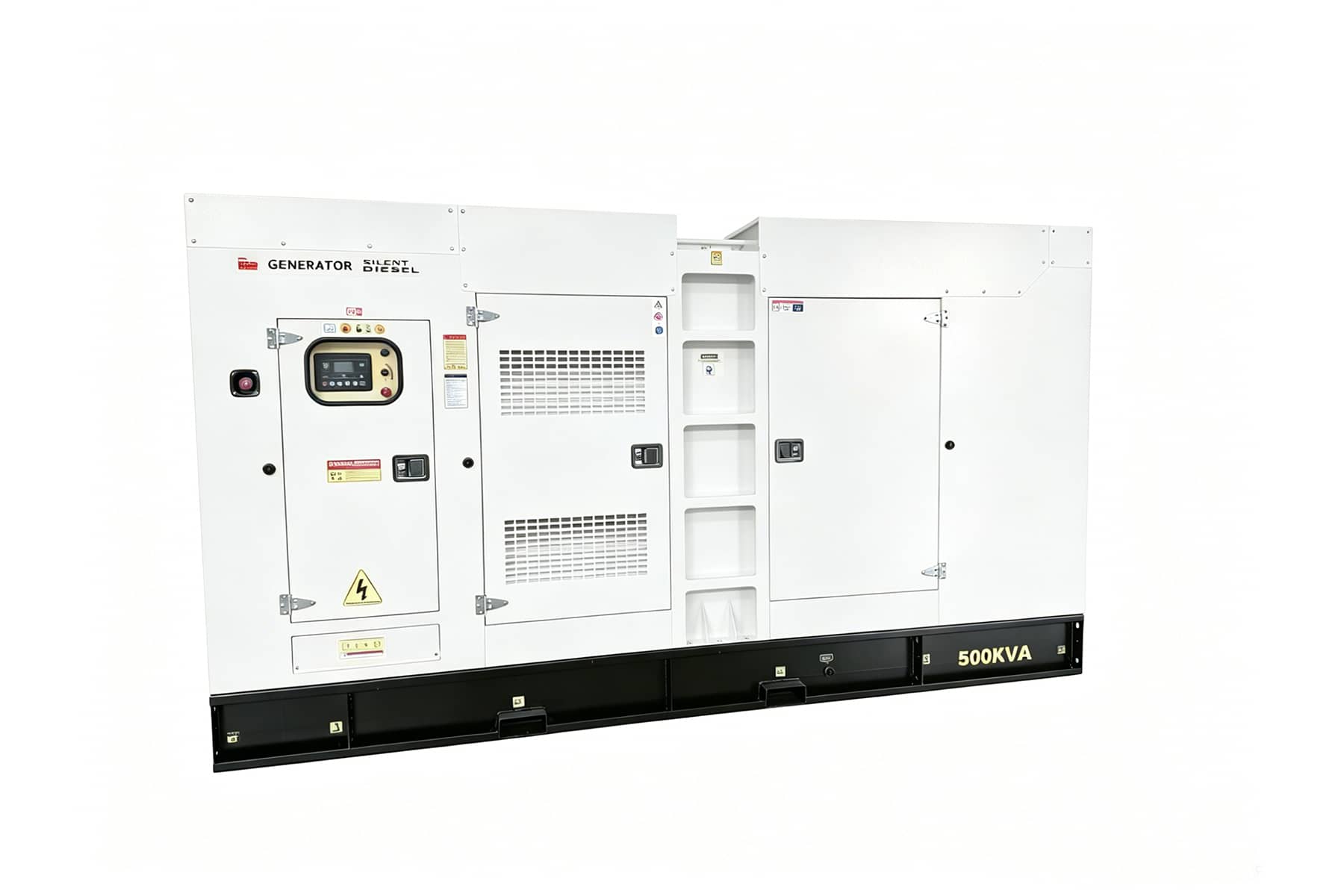

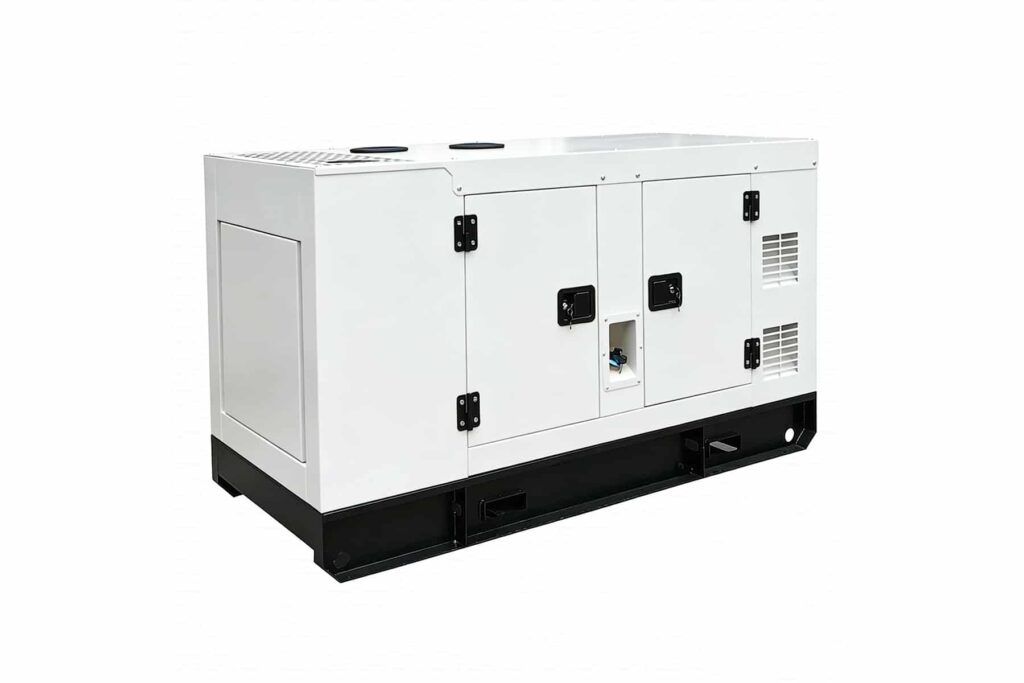

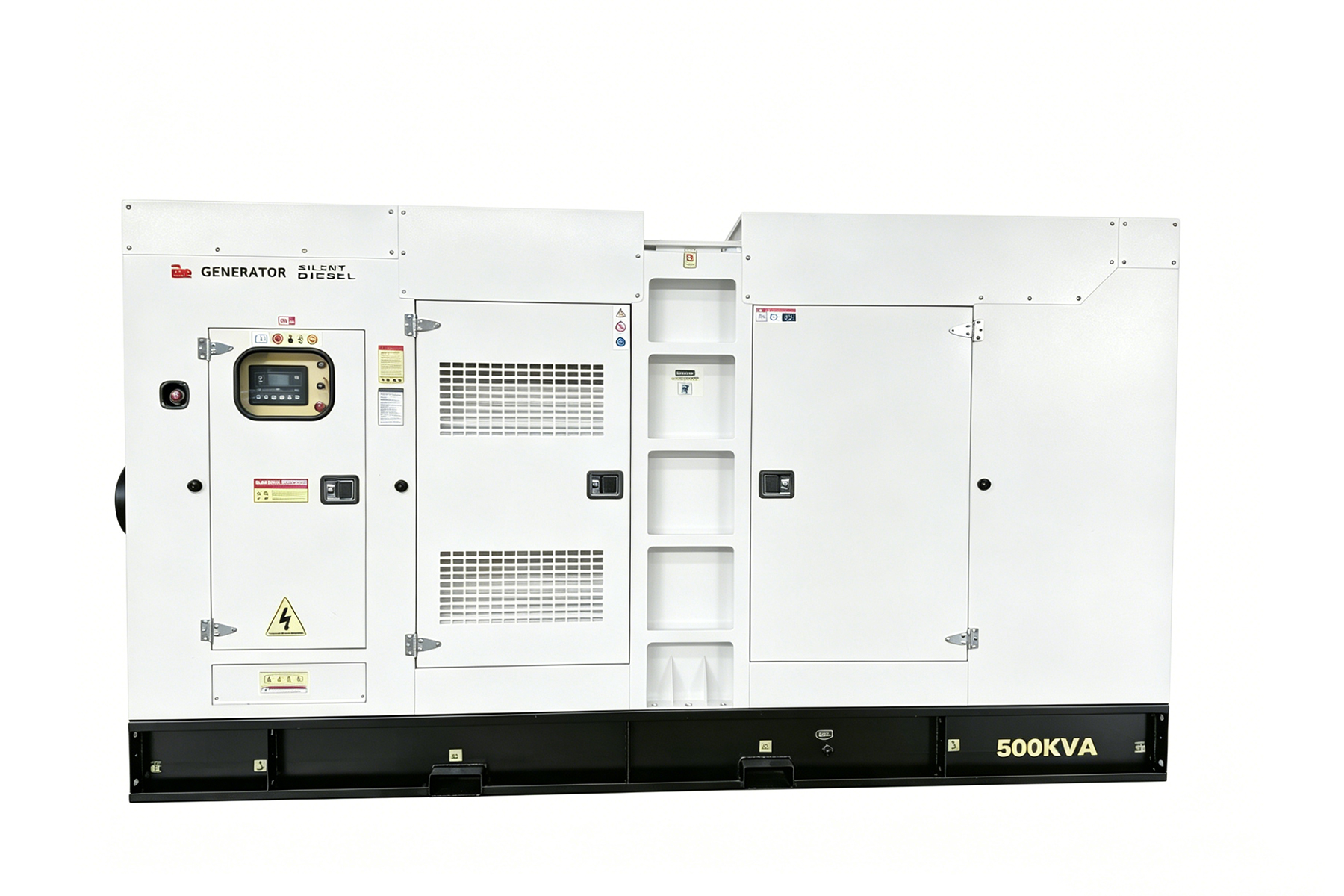

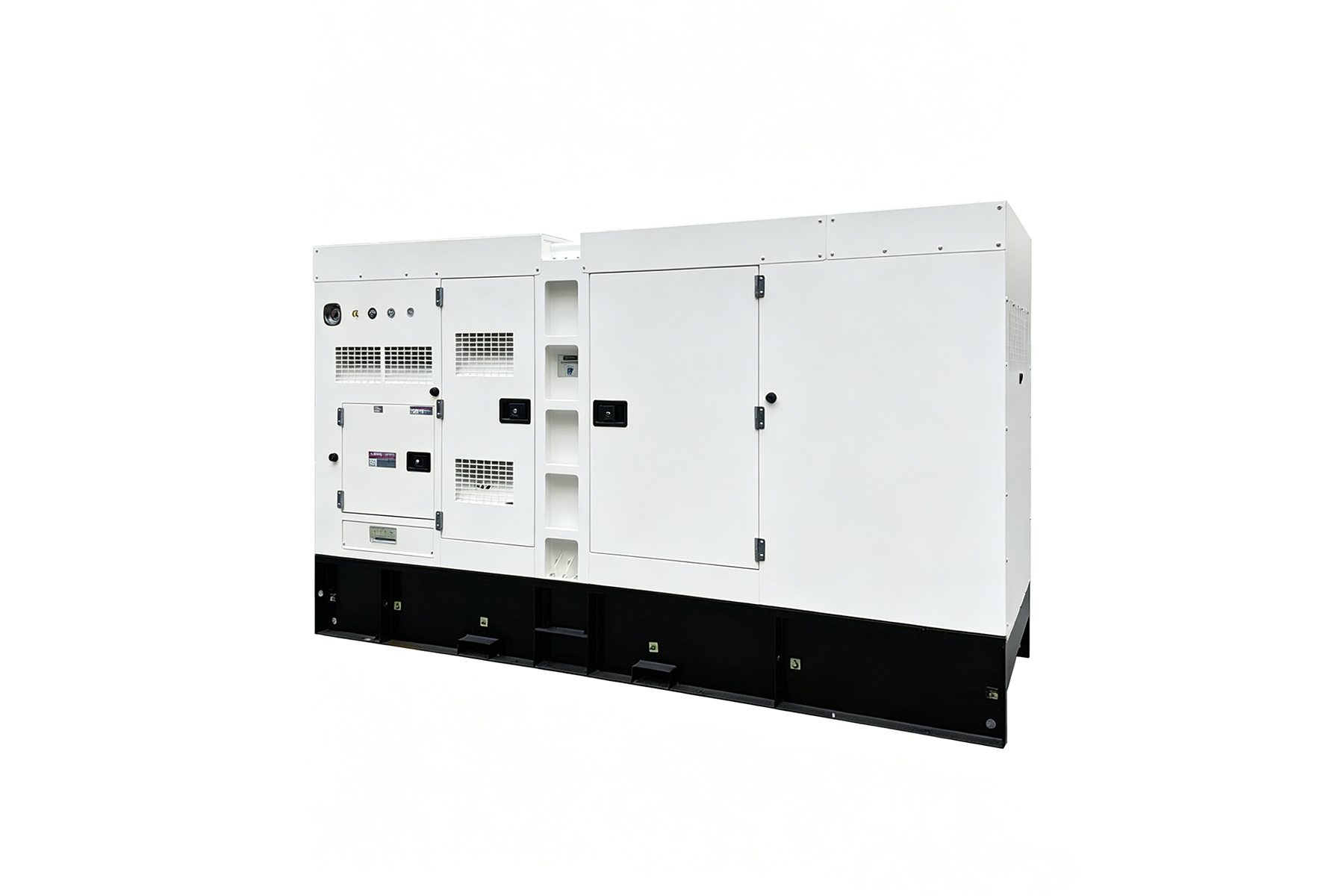

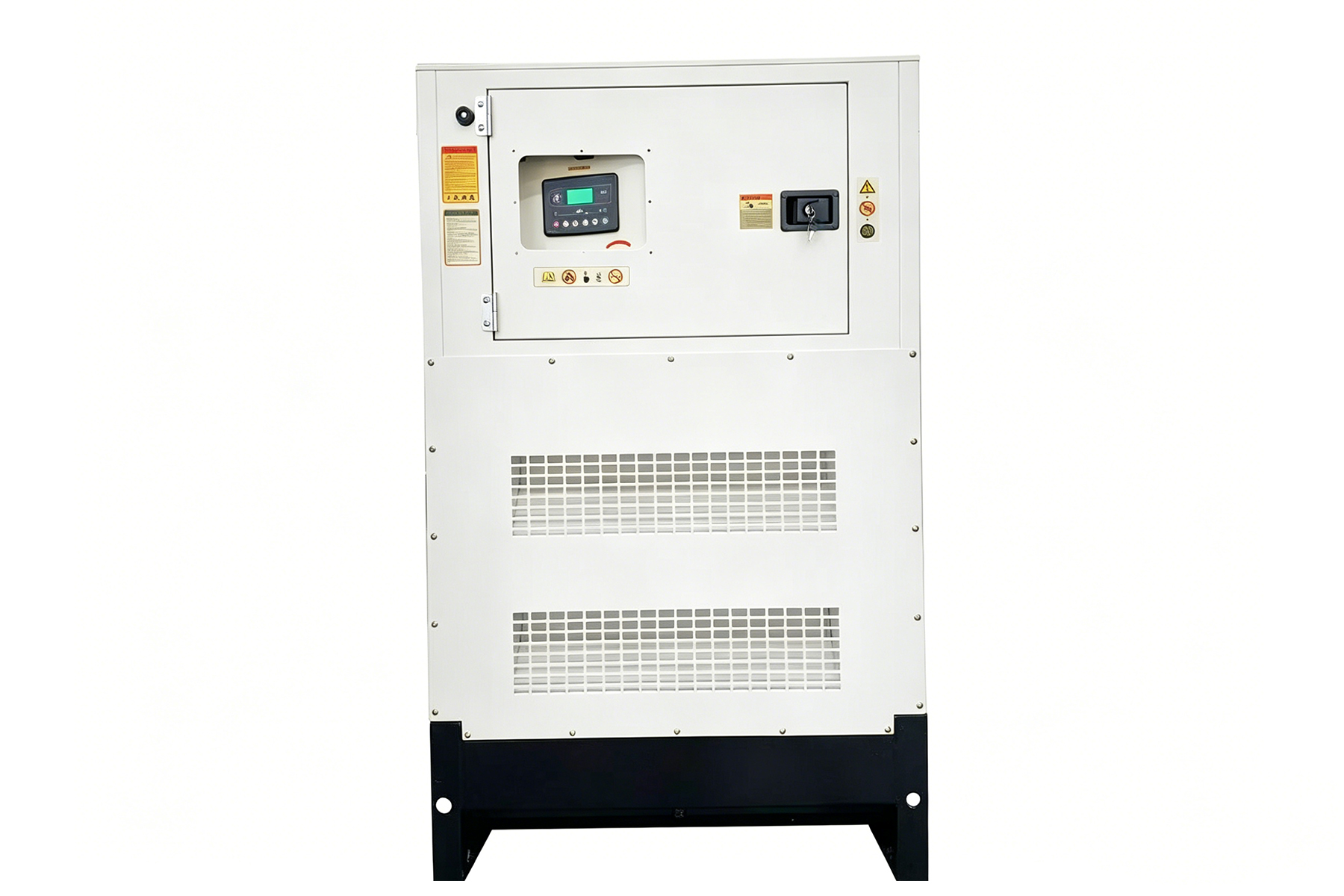

Slient Diesel Generator Set

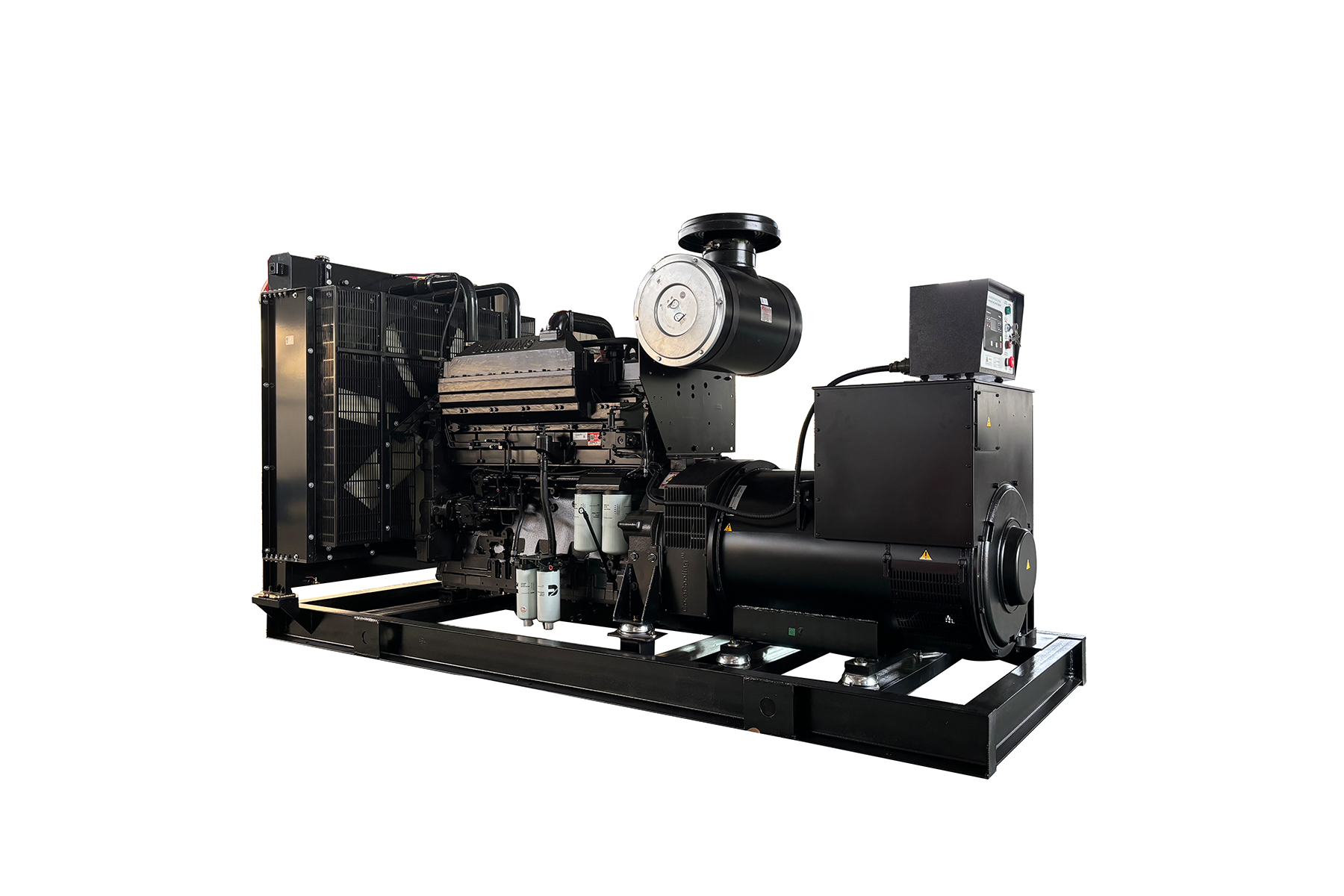

Open Diesel Generator Set

Characteristics

Canopy

The canopy is compact and strong, reducing space occupation, suitable for various application places.

High Level Rust Proof Technology

Three layers of anti rust coating (electrophoretic, two layers of spray coating)

Noise Cancellation

Standard 30 mesh sponge effectively reduces engine running noise by 20-30dBA

Muffler

High performance muffler with a maximum noise reduction effect of over 25dBA

Bounded Fuel Tank

Bounded fuel tank to prevent liquid leakage, the internal structure of the tank is designed to prevent surge and is better for safe transporta- tion. The large capacity tank provides more than 12 hours of generator running.

Moving & Transportation

Forklift hole,lifting rods& hock holes,pull rod are convenient for the generator movement and transportation.

Output Terminals & Sockets

Output terminals & multi sockets are easly and conveniently adapted to various power output connections.

Rental Generator Design

Outdoor rainproof and rustproof canopy, strong chassis suitable for rental generator applications.

Certification

FAQ

Are you a diesel generator set manufacturer?

Yes, SRGENSET is a diesel generator manufacturer, and we have our own production plant in Huai’an City, Jiangsu Province, China.

What power rating of diesel generator do you provide?

SRGENSET offers diesel generators with power ranging from 5 to 2000 kW, primarily operating at frequencies of 50 Hz and 60 Hz.

Do you support custom diesel generators?

Yes, SRGENSET supports custom diesel generator services. We have a large stock of frequently customized parts, and you can discuss specific details with our engineers.

Does your factory have certification?

SRGENSET holds numerous certifications, including ISO 9001, ISO 14001, ISO 45001, and other factory certifications, as well as E49, CE, ICG, and other product certifications.

What is the normal delivery time?

SRGENSET maintains a small stock of standard models. If you require a small quantity of these models, we can ship them to you within a week. If you need bulk orders or customized products, we typically ship within 30-40 days.
