Perkins Generator Series

Perkins Series

The diesel generator set is equipped with Perkins’s diesel engine.

· Standby Power:8kw-1320kw

· Type: Open/Silent/Super Silent/Mobile Trailer

· MOQ:1 Set

Frequency	Voltage	Standy Power		Backup Power		Engine	Model	Motor	Model
Frequency	Voltage	kW	kVA	kW	kVA	Engine	Model	Motor	Model
50	400	12	15	13.2	16.5	Perkins	403A-15G2	Nidec	TAL-A40-D
50	400	12	15	13.2	16.5	Perkins	403A-15G2	SRGENSET	SAL164D2
50	400	16	20	17.6	22	Perkins	404A-22G	Nidec	TAL-A40-F
50	400	16	20	17.6	22	Perkins	404A-22G	SRGENSET	SAL184A1
50	400	24	30	26.4	33	Perkins	1103A-33G	Nidec	TAL-A42-C
50	400	24	30	26.4	33	Perkins	1103A-33G	SRGENSET	SAL184E3
50	400	36	45	40	50	Perkins	1103A-33TG1	Nidec	TAL-A42-F
50	400	36	45	40	50	Perkins	1103A-33TG1	SRGENSET	SAL224C1
50	400	48	60	53	66	Perkins	1103A-33TG2	Nidec	TAL-A42-H
50	400	48	60	53	66	Perkins	1103A-33TG2	SRGENSET	SAL224E2
50	400	64	80	70	88	Perkins	1104A-44TG2	Nidec	TAL-A44-C
50	400	64	80	70	88	Perkins	1104A-44TG2	SRGENSET	SAL224H4
50	400	80	100	88	110	Perkins	1104C-44TAG2	Nidec	TAL-A44-D
50	400	80	100	88	110	Perkins	1104C-44TAG2	SRGENSET	SAL224M5
50	400	108	135	119	149	Perkins	1106A-70TG1	Nidec	TAL-A44-H
50	400	108	135	119	149	Perkins	1106A-70TG1	SRGENSET	SAL274D3
50	400	120	150	144	165	Perkins	1106A-70TAG2	Nidec	TAL-A44-J
50	400	120	150	144	165	Perkins	1106A-70TAG2	SRGENSET	SAL274E3
50	400	160	200	176	220	Perkins	1106A-70TAG4	Nidec	TAL-A44-M
50	400	160	200	176	220	Perkins	1106A-70TAG4	SRGENSET	SAL274K5
50	400	200	250	220	275	Perkins	1206A-E70TTAG3	Nidec	TAL-A46-D
50	400	200	250	220	275	Perkins	1206A-E70TTAG3	SRGENSET	SAL274M7
50	400	240	300	264	330	Perkins	1706A-E93TAG1 L	Nidec	TAL-A46-F
50	400	240	300	264	330	Perkins	1706A-E93TAG1 L	SRGENSET	SAL314C2
50	400	280	350	308	385	Perkins	2206C-E13TAG2 L	Nidec	TAL-A46-H
50	400	280	350	308	385	Perkins	2206C-E13TAG2 L	SRGENSET	SAL314F3
50	400	320	400	352	440	Perkins	2206D-E13TAG3 L	Nidec	TAL-A473-A
50	400	320	400	352	440	Perkins	2206D-E13TAG3 L	SRGENSET	SAL314H4
50	400	400	500	440	550	Perkins	2506C-E15TAG2 L	Nidec	TAL-A473-C
50	400	400	500	440	550	Perkins	2506C-E15TAG2 L	SRGENSET	SAL354B1
50	400	520	650	572	715	Perkins	2806A-E18TAG2 L	Nidec	TAL-A473-F
50	400	520	650	572	715	Perkins	2806A-E18TAG2 L	SRGENSET	SAL354F4

Standby		Prime		Engine		Alternator			Open Type Dimension	Silent Type Dimension
kVA	kW	kVA	kW	Model	Gov	Stamford	Leroy Somer	SRGENSET	Open Type Dimension	Silent Type Dimension
11	8.8	10	8	403A-11G1	Mech	S0L1-H1	TAL-A40-C	SA164-8	14006901000	18608101152
12.1	9.9	11	9	403D-11G commodity	Mech	S0L1-H1	TAL-A40-C	SA164-10.6	14006901000	18608101152
17.6	14.3	16	13	403D-15G L	Mech	S0L1-P1	TAL-A40-D	SA164-13	14006901000	18608101152
19.8	15.4	18	14	403A-15G2	Mech	S0L1-P1	TAL-A40-D	SA164-15.4	14006901000	18608101152
38.5	30.8	35	28	1103A-33G	Mech	S0L2-P1	TAL-A42-C	SA184-30	16007901320	21529601450
58.3	47.3	53	43	1103A-33TG1	Mech	S1L2-N1	TAL-A42-F	SA224-41	16007901280	21529601450
74.8	60.5	68	55	1103A-33TG2	Mech	S1L2-Y1	TAL-A42-H	SA224-54	20008501350	251010601600
83.6	67.1	76	61	1104A-44TG1	Mech	S1L2-Y1	TAL-A42-H	SA224-60	20008501350	251010601600
100.1	80.3	91	73	1104A-44TG2	Mech	UCI 224F	TAL-A44-C	SA224-76	20008501350	251010601600
125.4	101.2	114	92	1104C-44TAG2	Elec	UCI 274C	TAL-A44-D	SA224-96	22509601350	336011101750
185.9	148.5	169	135	1106A-70TAG2 Switchable	Elec	UCI 274E	TAL-A44-H	SA274-134	26509601650	336011101750
216.7	173.8	197	158	1106A-70TAG3 Switchable	Elec	UCI 274F	TAL-A44-K	SA274-154	26509601650	336011101750
247.5	198	225	180	1206A-E70TTAG3	ECM	UCI 274G	TAL-A44-L	SA274-180	290012301670	362012302050
272.8	217.8	248	198	1506A-E88TAG2 L	ECM	UCI 274H	TAL-A44-M	SA274-192	300013001680	394013002050
319	255.2	290	232	1506A-E88TAG3 L	ECM	UCDI 274J	TAL-A46-C	SA274-240	300013001680	394013002050
392.7	314.6	357	286	1706A-E93TAG1 L	ECM	S4L1D-D4	TAL-A46-F	SA314-288	300013001680	394013002050
440	352	400	320	2206C-E13TAG2 L	ECM	S4L1D-E4	TAL-A46-G	SA314-336	349013302050	426014622150
481.8	385	438	350	2206A-E13TAG6	ECM	S4L1D-E4	TAL-A46-H	SA314-360	349013302050	426014622150
550	440	500	400	2506C-E15TAG1 L	ECM	S4L1D-F4	TAL-A473-A	SA314-432	375013502100	506019202500
687.5	550	625	500	2806C-E18TAG1A L	ECM	S5L1D-D4	TAL-A473-C	SA354-540	360017502200	540022602500
825	660	750	600	4006-23TAG2A Switchable	Elec	S5L1D-E4	TAL-A473-E	SA354-600	435017502270	540022602500
882.2	706.2	802	642	2806A-E18TTAG4	ECM	S5L1D-F4	TAL-A473-F	SA354-648	500021822460	540022602500
1100	880	1000	800	4008TAG2 Switchable	Elec	S6L1D-C4	TAL-A49-C	SA404-874	500021822460	540022602500
1375	1100	1250	1000	4012-46TWG2A Switchable	Elec	S6L1D-E4	TAL-A49-E	SA404-1080	500021822460	40'HQ Container
1650	1320	1500	1200	4012-46TAG2A Switchable	Elec	S6L1D-G4	LSA50.2 M6	SA404-1200	500021822460	40'HQ Container

Generator Set Parameters - Perkins Engine

Engine

Fuel Consumption per hour

190-250g/kWh

Diesel Generator Set

Phase	AC Three Phase
Power Factor (cosΦ)	0.8(lag)
Fuel Tank Capacity	100L-10000L
Noise Level	≤75 db
Type	Open,Slient(Super Slient),Protable,Containerized
Color	Customization available
Certification	ISO9001/ISO14001/CE/E49
Warranty	One Year/1000 Running Hour

Diesel Generator Manufacturers

SRGENSET is a diesel generator set manufacturer in China. We help our customers obtain reliable mains/emergency power sources by providing reliable power supply solutions for various applications.

· Advanced Diesel Generator Production Line

· Independent design and assembly, supporting customer customization.

· A rigorous review process ensures high-quality diesel generators.

Characteristics

Canopy

The canopy is compact and strong, reducing space occupation, suitable for various application places.

High Level Rust Proof Technology

Three layers of anti rust coating (electrophoretic, two layers of spray coating)

Noise Cancellation

Standard 30 mesh sponge effectively reduces engine running noise by 20-30dBA

Muffler

High performance muffler with a maximum noise reduction effect of over 25dBA

Bounded Fuel Tank

Bounded fuel tank to prevent liquid leakage, the internal structure of the tank is designed to prevent surge and is better for safe transporta- tion. The large capacity tank provides more than 12 hours of generator running.

Moving & Transportation

Forklift hole,lifting rods& hock holes,pull rod are convenient for the generator movement and transportation.

Output Terminals & Sockets

Output terminals & multi sockets are easly and conveniently adapted to various power output connections.

Rental Generator Design

Outdoor rainproof and rustproof canopy, strong chassis suitable for rental generator applications.

Generator Set Structure

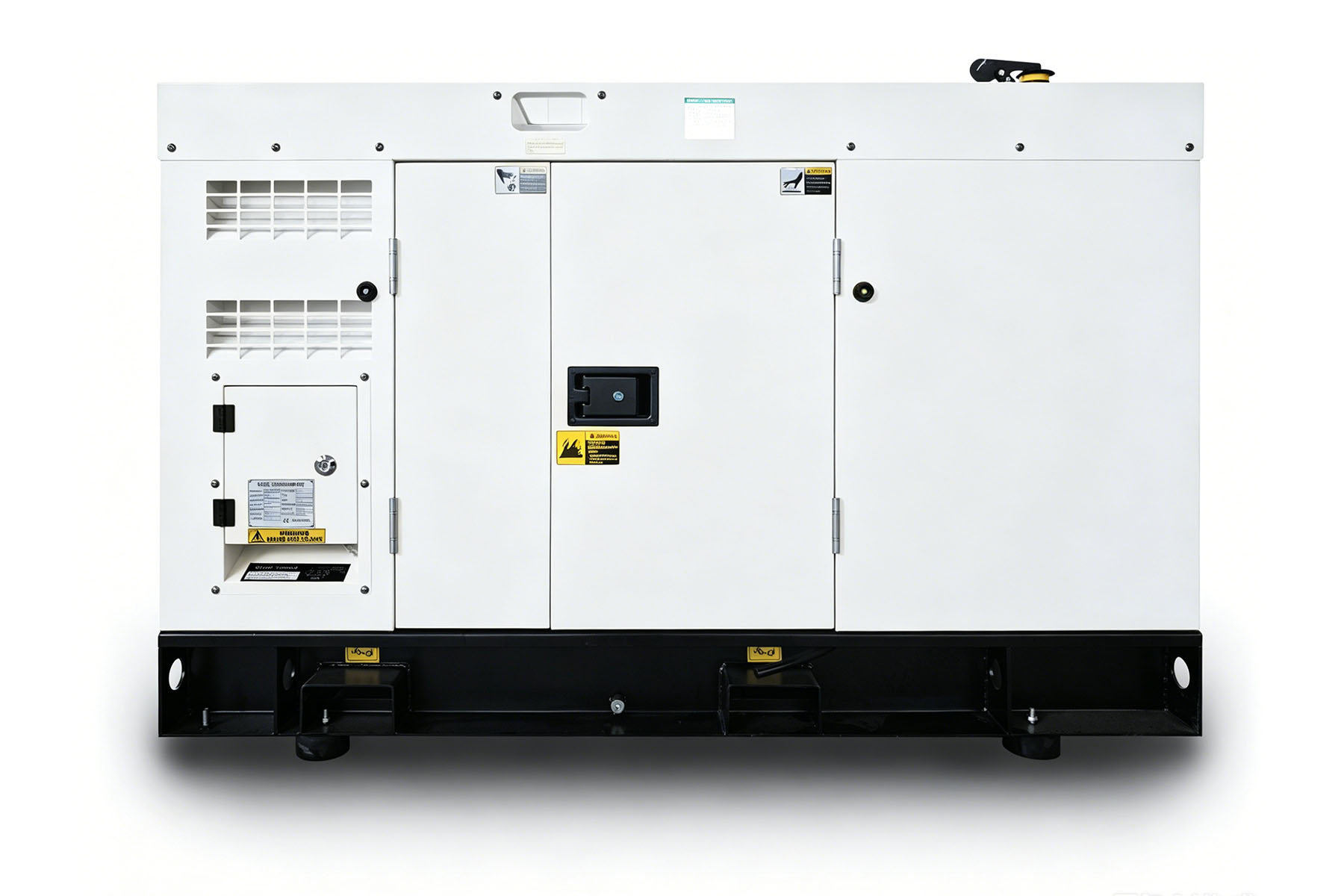

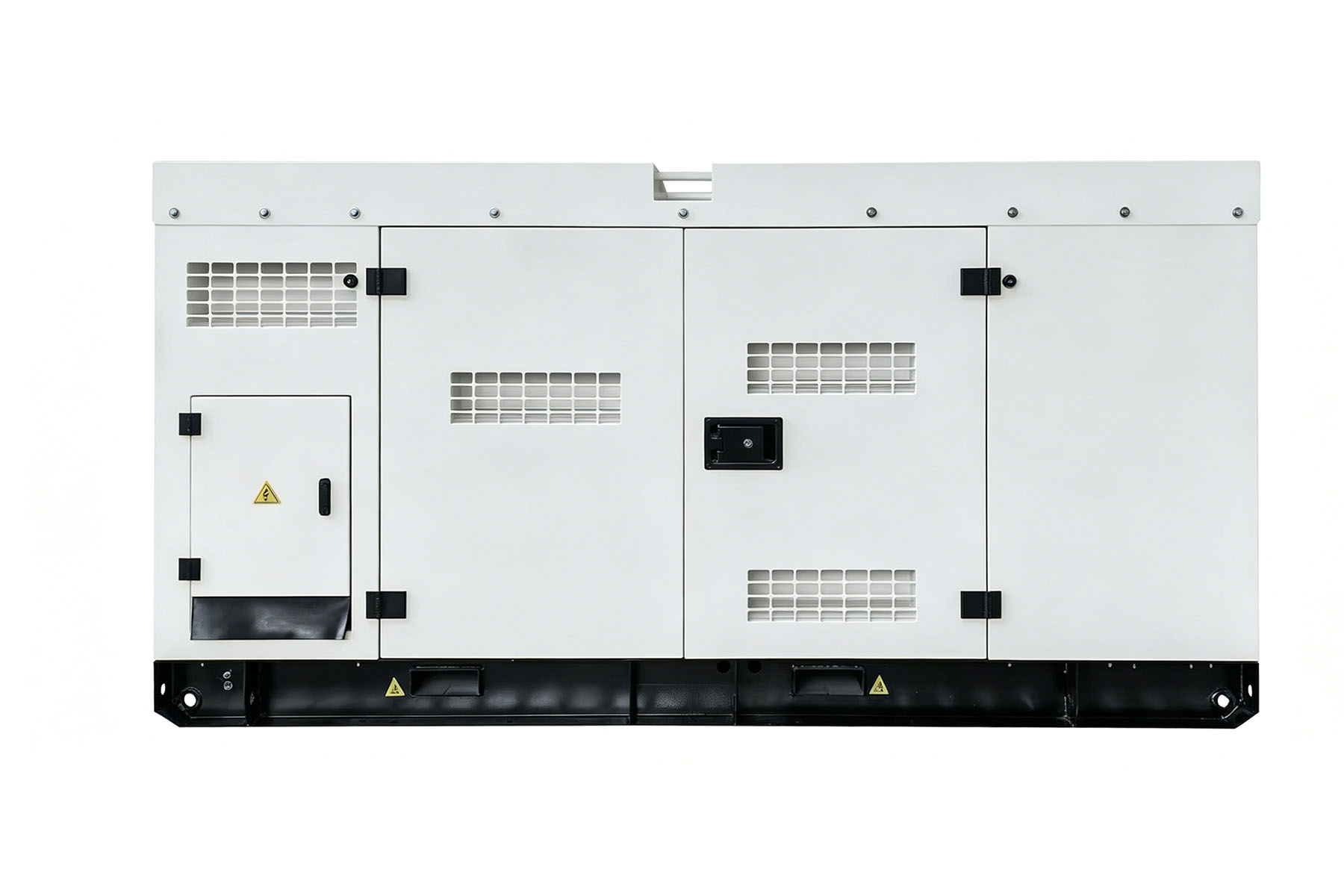

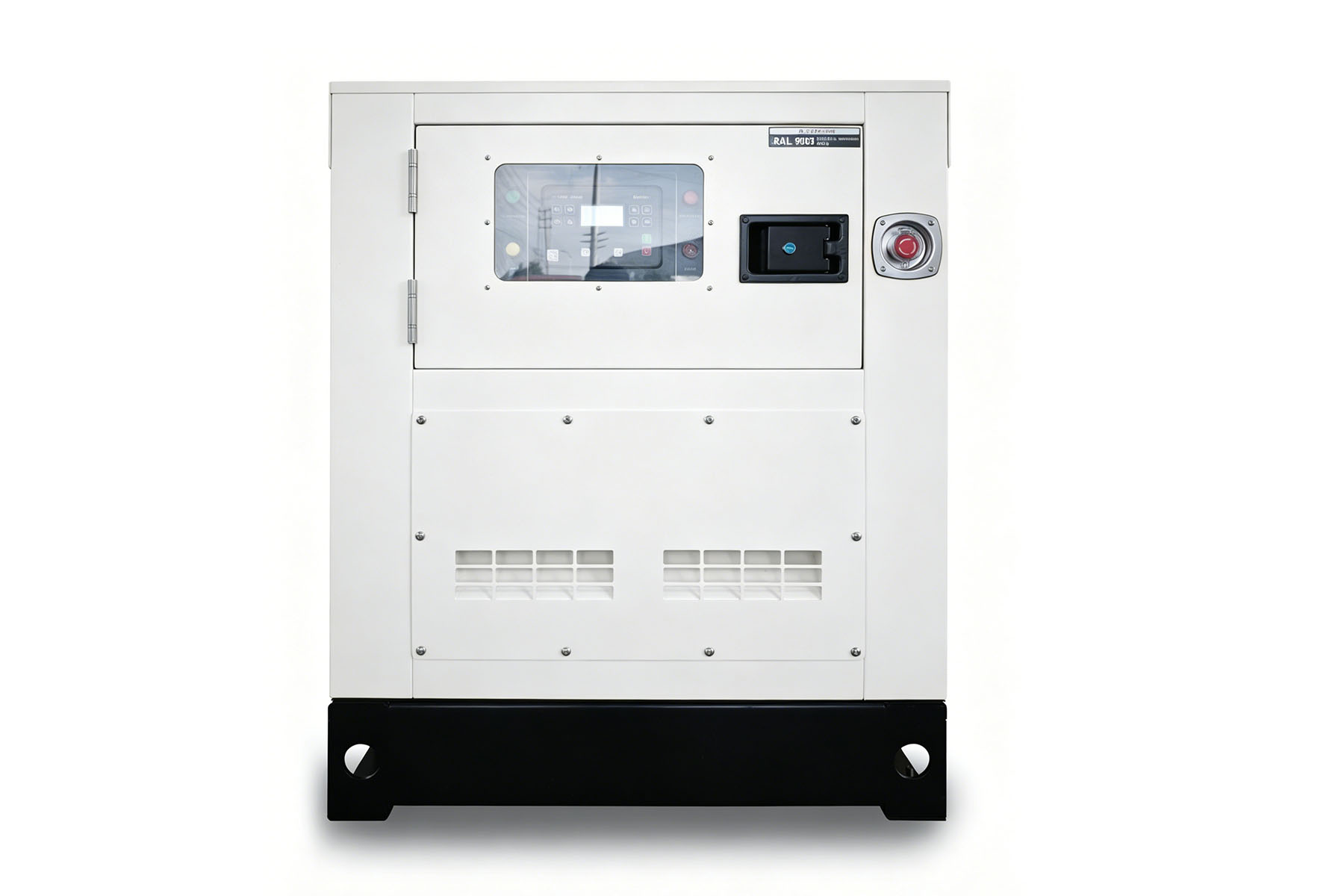

Slient Diesel Generator Set

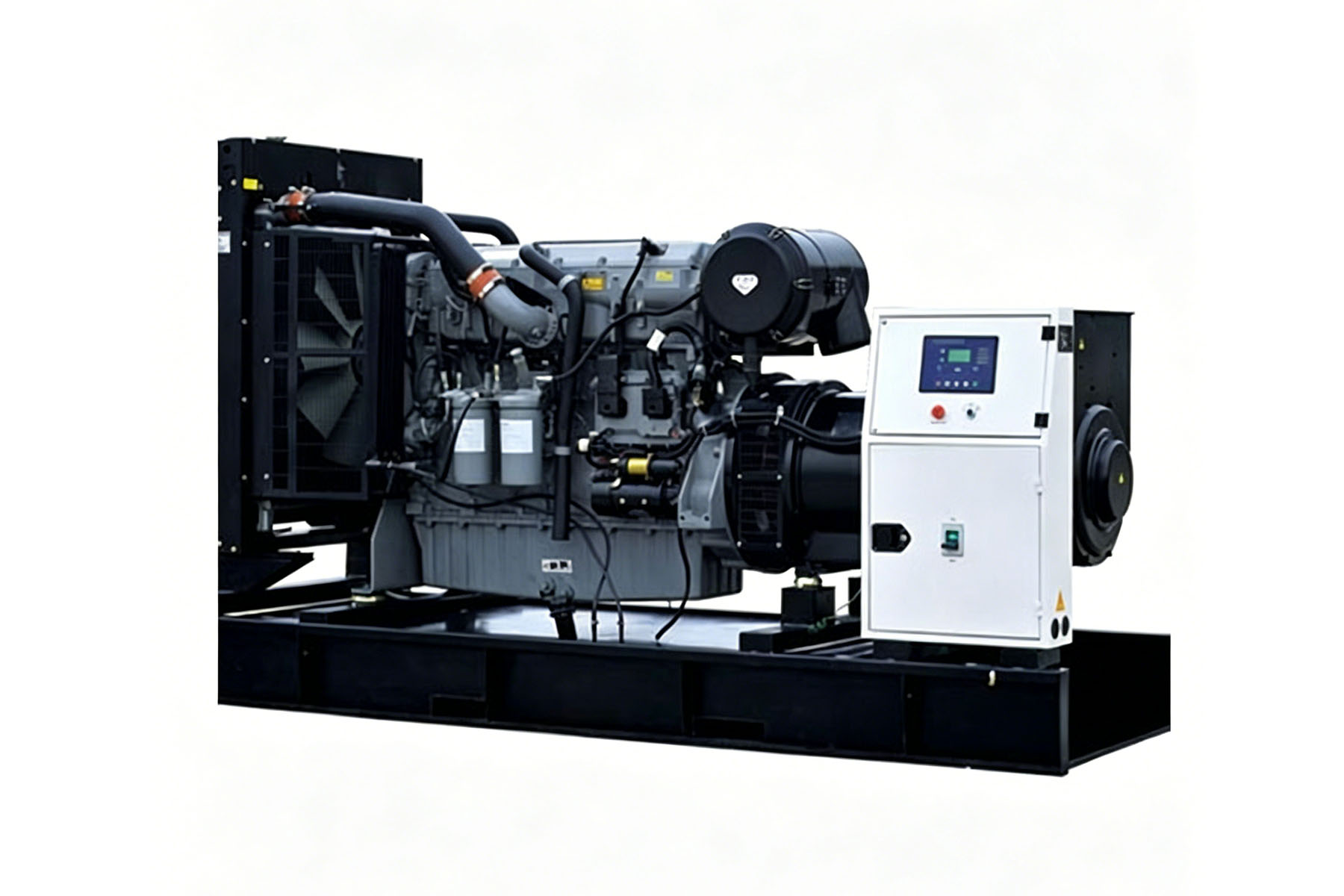

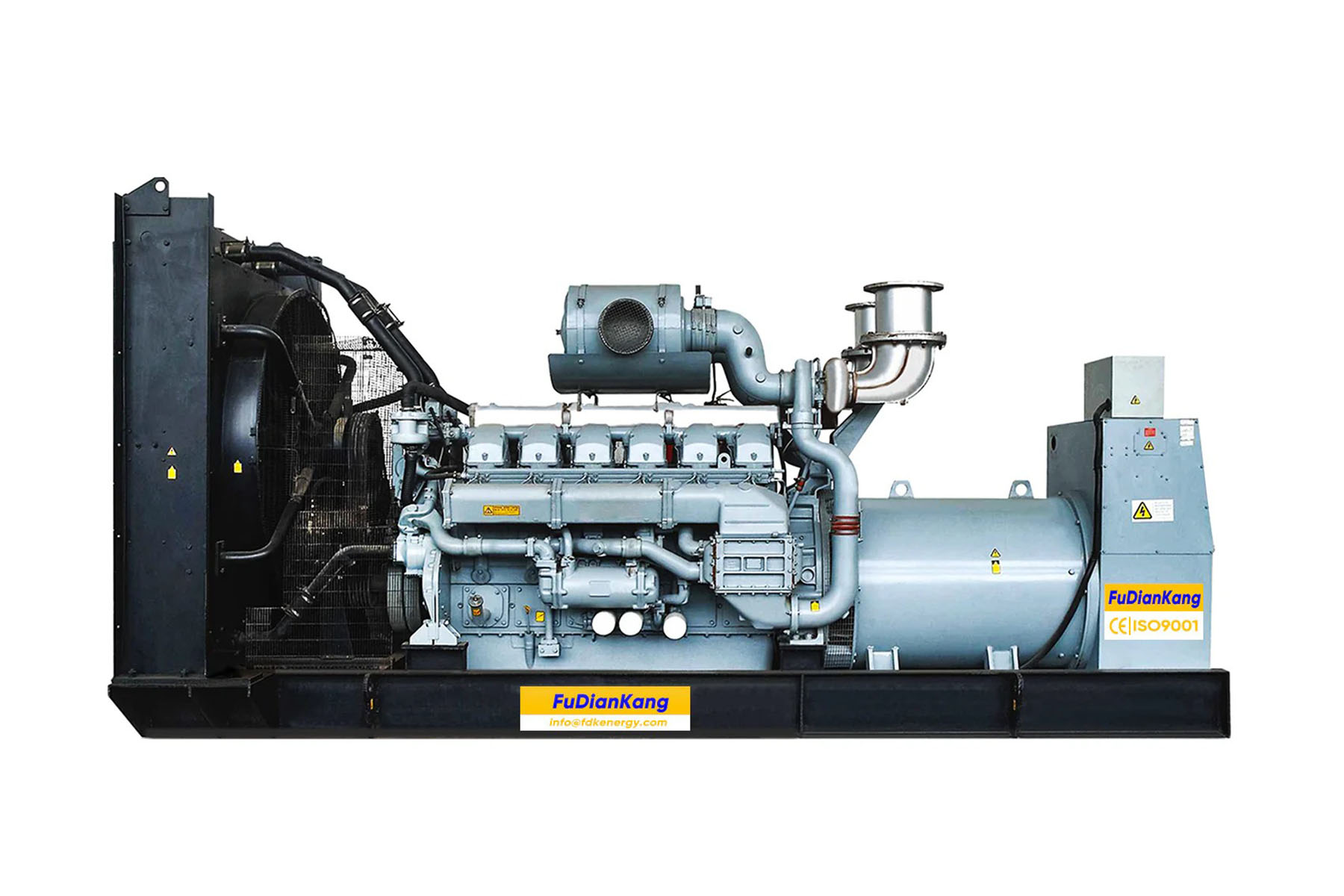

Open Diesel Generator Set

Why Choose SRGENSET ?

Rich Experience

SRGENSET has over a decade of industry experience in diesel generator set manufacturing, enabling it to meet a wide range of customer application needs.

Strong Production Capacity

SRGENSET has two advanced diesel generator production lines, and we can supply more than 10,000 diesel generator sets annually.

Certified Factory

SRGENSET factory is ISO9001 and ISO14001 certified, and our diesel generator sets have CE and ICG certifications.

Multi-brand Collaboration

SRGENSET partners with several well-known brands, such as Pekins and Cummins, to provide you with stable and reliable power supply solutions.

Comprehensive power range

SRGENSET offers diesel generator sets with power ranging from 5-2000 kW and frequencies of 50/60 Hz, covering a wide range of applications.

Customized Services

SRGENSET offers custom diesel generator services; you can communicate with our engineers to personalize your generator set.

Certification

FAQ

Are you a diesel generator set manufacturer?

Yes, SRGENSET is a diesel generator manufacturer, and we have our own production plant in Huai’an City, Jiangsu Province, China.

What power rating of diesel generator do you provide?

SRGENSET offers diesel generators with power ranging from 5 to 2000 kW, primarily operating at frequencies of 50 Hz and 60 Hz.

Do you support custom diesel generators?

Yes, SRGENSET supports custom diesel generator services. We have a large stock of frequently customized parts, and you can discuss specific details with our engineers.

Does your factory have certification?

SRGENSET holds numerous certifications, including ISO 9001, ISO 14001, ISO 45001, and other factory certifications, as well as E49, CE, ICG, and other product certifications.

What is the normal delivery time?

SRGENSET maintains a small stock of standard models. If you require a small quantity of these models, we can ship them to you within a week. If you need bulk orders or customized products, we typically ship within 30-40 days.
